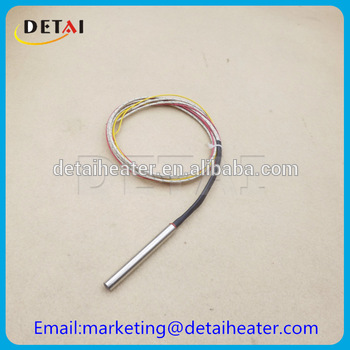

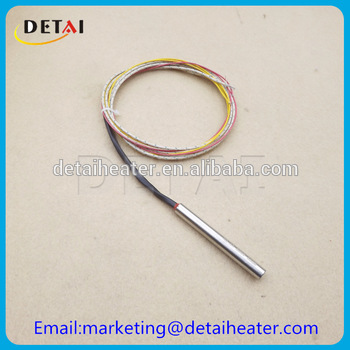

Cartridge heater with J type thermocouple

Cartridge heater with J type thermocouple

Technical data of cartridge heater

1.Resistance wire (NiCr20/80)

2.Material: stainless steel 304,321,316, Incoloy 800, Incoloy 840

3.Maximum temperature 800°C

4.Standard cold length at lead exit: 0.375"

5.Standard cold length at disc end: 0.25"

6.Thermocouple: K or J

7.Cable wire: silicone wire, metal protection wire, fiberglass wire, etc

8.Flange/thread: M12, M14, M16, 1", 1 1/4", 1 1/2", 2",etc

9.Diameter: 6-25mm

Applications of cartridge heater

1.Injection moulding - Internal heating of nozzles

2.Hot runner systems - Heating of manifolds

3.Packaging industry - Heating of cutting bars, hot stamps

4.Laboratories - Heating of analytical equipment

5.Medical: Dialysis, Sterilization, Blood Analyzer, Nebulizer, Blood/Fluid Warmer, Temperature Therapy

6.Telecommunications: Deicing, Enclosure Heater

7.Transportation: Oil/Block Heater, Aircraft Coffee Pot Heaters,

8.Food Service: Steamers, Dish Washers,

9.Industrial: Packaging Equipment, Hole Punches, Hot Stamp.

Features of cartridge heater

1.Long lifespan, rational internal structure design. Using imported high-purity magnesium oxide mandrel and magnesium power for filling, high thermal conductivity

2.Using Centerless Machine to standardize Diameter, high thermal efficiency, fast heat dissipation.

3.Advanced technology and equipment make the quality good and stable.

4.All items have passed CE and UL certification.

Shipping method of cartridge heater

Display show of cartridge heater

Certifications

Buyer Feedback

Hk Fair

FAQ

1. Are you manufacturer or trade company?

We are a professional factory specialized in customizing various heating element since 1995.

2. What information do you need for quotation?

Watt & volt(a must), length & diameter(optional, can be suggested by our engineers),quantity & other specific requirements.

3. How long is the lead time?

Usually 10-15 days.

4. Can you put our logo on the heater?

Yes, no problem. Please provide us with your authorization letter.

5. Can you make as per to my requirements?

Of course, all the heaters are customized.
